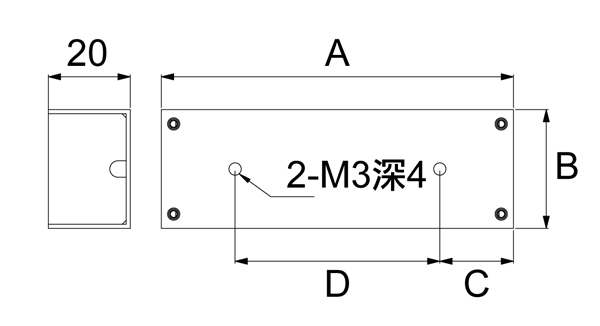

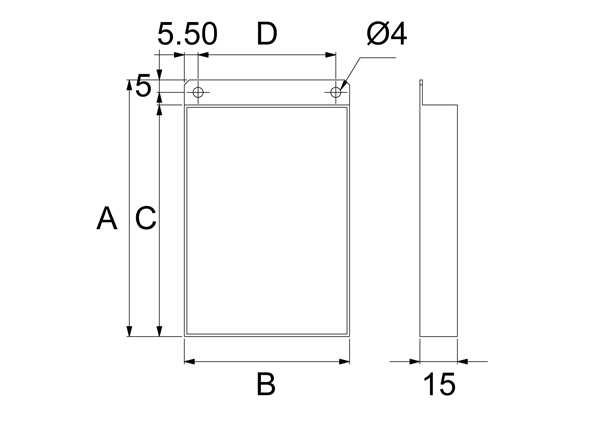

| | 型號 | 發光面 (mm) | 功率 (W) | | 長 | 寬 | R | W,B,G | | HB20-22/15R,W,B,G | 22 | 15 | 0.36 | 0.72 | | HB20-50/15R,W,B,G | 50 | 15 | 1.08 | 2.16 | | HB20-80/15R,W,B,G | 80 | 15 | 1.8 | 3.6 | | HB20-100/15R,W,B,G | 100 | 15 | 2.34 | 4.5 | | HB20-72/24R,W,B,G | 72 | 24 | 3.24 | 4.32 | | HB20-100/24R,W,B,G | 100 | 24 | 4.5 | 5.76 | | HB20-100/48R,W,B,G | 100 | 48 | 9 | 10.26 | | 光源電線長0.5m。 | | 型號 | 寸法 (mm) | | A | B | C | D | | HB20-22/15 | 27.5 | 17 | 8.75 | 10 | | HB20-50/15 | 60 | 17 | 15 | 30 | | HB20-80/15 | 90 | 17 | 20 | 50 | | HB20-100/15 | 110 | 17 | 35 | 40 | | HB20-72/24 | 86 | 29 | 18 | 50 | | HB20-100/24 | 112 | 29 | 36 | 40 | | HB20-100/48 | 110 | 50 | 35 | 40 | -------------------- | 型號 | 發光面 (mm) | 功率 (W) | | 長 | 寬 | | HB15-36/30R | 34 | 30 | 1.08 | | HB15-66/60R | 64 | 60 | 4.32 | | HB15-66/90R | 64 | 90 | 6.48 | | HB15-66/120R | 64 | 120 | 8.64 | | HB15-96/90R | 94 | 90 | 9.72 | | HB15-96/120R | 94 | 120 | 12.96 | | HB15-75/100R | 73 | 100 | 12.96 | | HB15-126/120R | 124 | 120 | 17.28 | | 光源電線長0.5m。 | | 型號 | 寸法 (mm) | | A | B | C | D | | HB15-36/30R | 42.5 | 36 | 32.5 | 25 | | HB15-66/60R | 72.5 | 66 | 62.5 | 55 | | HB15-66/90R | 102.5 | 66 | 92.5 | 55 | | HB15-66/120R | 132.5 | 66 | 122.5 | 55 | | HB15-96/90R | 102.5 | 96 | 92.5 | 85 | | HB15-96/120R | 132.5 | 96 | 122.5 | 85 | | HB15-75/100R | 114.5 | 80 | 104.5 | 69 | | HB15-126/120R | 132.5 | 126 | 122.5 | 115 | -------------------- | 型號 | 發光面 (mm) | 功率 (W) | | HB10-51/51R | 51 | 51 | 4.32 | | HB10-83/75R | 83 | 75 | 10.8 | | 光源電線長0.5m。 | | 型號 | 寸法 (mm) | | A | B | C | D | E | F | | HB10-51/51R | 61 | 61 | 53 | 10.5 | 40 | 4 | | HB10-83/75R | 95 | 85 | 85 | 17.5 | 50 | 5 | -------------------- | 型號 | 發光面 (mm) | 功率 (W) | | HB32-90/90W | 90 | 120 | 5.94 | | HB32-120/120W | 120 | 120 | 10.62 | | 光源電線長0.5m。 | | 型號 | 寸法 (mm) | | A | B | C | D | | HB32-90/90W | 110 | 92 | 100 | 60 | | HB32-120/120W | 140 | 122 | 130 | 90 | 如以上規格不符使用，另提供客製化服務，歡迎洽詢． |
