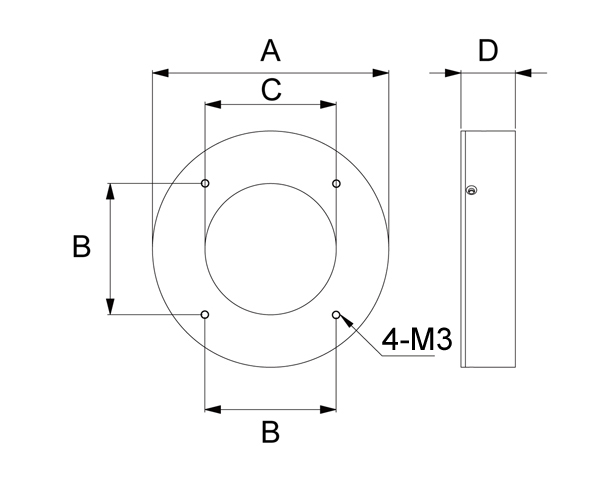

| | 型號 | 發光面 (mm) | 功率 (W) | | 外徑 | 內徑 | R | W,B,G | | HR00-50/15R,W,B,G | 50 | 15 | 1.62 | 3.24 | | HR00-78/33R,W,B,G | 78 | 33 | 2.16 | 4.32 | | HR20-38/15R,W,B,G | 38 | 15 | 1.08 | 2.16 | | HR20-50/28R,W,B,G | 50 | 28 | 1.62 | 3.24 | | HR20-70/39R,W,B,G | 70 | 39 | 3.6 | 5.76 | | HR20-90/50R,W,B,G | 90 | 50 | 6.48 | | HR30-120/70R,W,B,G | 120 | 70 | 10.8 | 16.2 | | HR35-50/24R,W,B,G | 50 | 24 | 1.44 | 2.88 | | HR60-38/15R,W,B,G | 38 | 15 | 1.08 | 2.16 | | HR60-74/48R,W,B,G | 74 | 48 | 2.7 | 5.4 | | HR60-100/68R,W,B,G | 100 | 68 | 5.4 | | HR90-50/20R,W,B,G | 50 | 20 | 0.72 | 1.44 | | HR90-75/46R,W,B,G | 75 | 46 | 1.44 | 2.88 | | HR90-96/60R,W,B,G | 96 | 60 | 1.8 | 3.6 | | HR90-152/114R,W,B,G | 152 | 114 | 2.88 | 5.76 | | HR00-50/15IR | 50 | 15 | 1.62 | | HR20-55/20RGB | 55 | 20 | 3.6 | | 光源電線長0.5m。 | | 型號 | 寸法 (mm) | | A | B | C | D | | HR00-50/15 | 50 | 24.74 | 15 | 18.5 | | HR00-78/33 | 102 | 33 | 49.3 | 12 | | HR20-38/15 | 38 | 19.8 | 15 | 16 | | HR20-50/28 | 50 | 28.28 | 28 | 16.1 | | HR20-70/39 | 70 | 40 | 39 | 16.5 | | HR20-90/50 | 90 | 50 | 50 | 20.7 | | HR30-120/70 | 120 | 63.63 | 70 | 20 | | HR35-50/24 | 50 | 25 | 24 | 18 | | HR60-38/15 | 38 | 19.8 | 15 | 16 | | HR60-74/48 | 74 | 42.43 | 48 | 19 | | HR60-100/68 | 100 | 53.39 | 68 | 22 | | HR90-50/20 | 50 | 25.46 | 20 | 10 | | HR90-75/46 | 75 | 39.6 | 46 | 10 | | HR90-96/60 | 96 | 56.6 | 60 | 10 | | HR90-152/114 | 152 | 92 | 114 | 10 | | HR20-55/20RGB | 55 | 25 | 20.5 | 20 | 如以上規格不符使用，另提供客製化服務，歡迎洽詢． |
