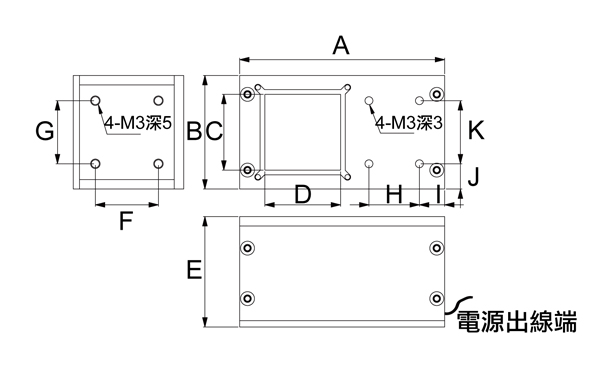

| 型號 | 發光面 (mm) | 功率 (W) | | R | W,B,G | | HEC-20R,W,B,G | 20 | 20 | 0.72 | 1.62 | | HEC-30R,W,B,G | 30 | 30 | 1.44 | 2.88 | | HEC-40R,W,B,G | 40 | 40 | 3.06 | 6.12 | | HEC-50R,W,B,G | 50 | 50 | 4.32 | 8.64 | | HEC-70R,W,B,G | 70 | 70 | 8.64 | 17.28 | | HEC-83R | 83 | 75 | 10.8 | - | | HEC-120R,W,B, | 120 | 120 | 27 | 54 | | 光源電線長0.5m。 | | 型號 | 寸法 (mm) | | A | B | C | D | E | F | G | H | I | J | K | | HEC-30 | 65 | 36 | 24 | 24 | 35 | 20 | 20 | 16 | 8 | 8 | 20 | | HEC-40 | 75 | 46 | 32 | 32 | 45 | 24 | 24 | 16 | 8 | 15 | 16 | | HEC-50 | 85 | 56 | 40 | 40 | 55 | 24 | 24 | 16 | 8 | 20 | 16 | | HEC-70 | 105 | 76 | 60 | 60 | 75 | 40 | 40 | 16 | 8 | 30 | 16 | | HEC-83 | 102.5 | 87 | 81 | 74.5 | 79.5 | 50 | 50 | - | - | - | - | | HEC-120 | 155 | 130 | 110 | 110 | 125 | 60 | 60 | 16 | 8 | 57 | 16 | 如以上規格不符使用，另提供客製化服務，歡迎洽詢． |
