| 伺服馬達 | 驅動器型號 SGDM- | 產業應用 |
| 系列 | Outlines | 容量 | 100V | 200V |
| 單相 | 單相 | 三相 |
低
慣

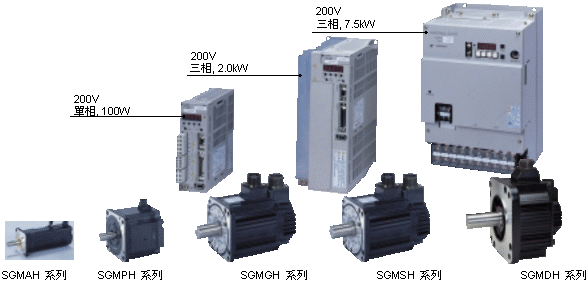

量 | SGMAH
(3000min–1) | Super High Power
Rate Series
Large torque required at low inertia. | 30W | A3BDA | A3ADA> | – | ■ Chip Mount
■ PCB 鑽孔設備
■ 食品機械
■ 搬運設備 |
| 50W | A5BDA | A5ADA | – |
| 100W | 01BDA | 01ADA | – |
| 200W | 02BDA | 02ADA | – |
| 400W | – | 04ADA | – |
| 750W | – | – | 08ADA |
SGMPH
(3000min–1) | Cube Type Series
Short L-length. Good for narrow space installation. | 100W | 01BDA | 01ADA | – |
| 200W | 02BDA | 02ADA | – |
| 400W | – | 04ADA | – |
| 750W | – | – | 08ADA |
| 1500W | – | – | 15ADA |
中
慣
量 | SGMGH
(1500min–1) | High Speed Feed Series
High speed rotation required without load. | 0.45kW | – | – | 05ADA | ■ CNC 工具母機
■ 傳動設備
■ 食品機械
■ 搬運設備 |
| 0.85kW | – | – | 10ADA |
| 1.3kW | – | – | 15ADA |
| 1.8kW | – | – | 20ADA |
| 2.9kW | – | – | 30ADA |
| 4.4kW | – | – | 50ADA |
| 5.5kW | – | – | 60ADA |
| 7.5kW | – | – | 75ADA |
SGMGH
(1000min–1) | 0.3kW | – | – | 05ADA |
| 0.6kW | – | – | 08ADA |
| 0.9kW | – | – | 10ADA |
| 1.2kW | – | – | 15ADA |
| 2.0kW | – | – | 20ADA |
| 3.0kW | – | – | 30ADA |
| 4.0kW | – | – | 50ADA |
| 5.5kW | – | – | 60ADA |
SGMSH
(3000min–1) | Super High Power Rate Series
Large torque required at low inertia. | 1.0kW | – | – | 10ADA | ■ Chip Mount
■ PCB鑽孔設備
■ 工具機供料設備 |
| 1.5kW | – | – | 15ADA |
| 2.0kW | – | – | 20ADA |
| 3.0kW | – | – | 30ADA |
| 4.0kW | – | – | 50ADA |
| 5.0kW | – | – | 50ADA |
SGMDH
(2000min–1) | Flat Series
Short L-length. Good for narrow. space installation. | 2.2kW | – | – | 30ADA | ■ 機械手臂
■ 食品機械
■ 搬運設備 |
| 3.2kW | – | – | 50ADA |
| 4.0kW | – | – | 50ADA |
